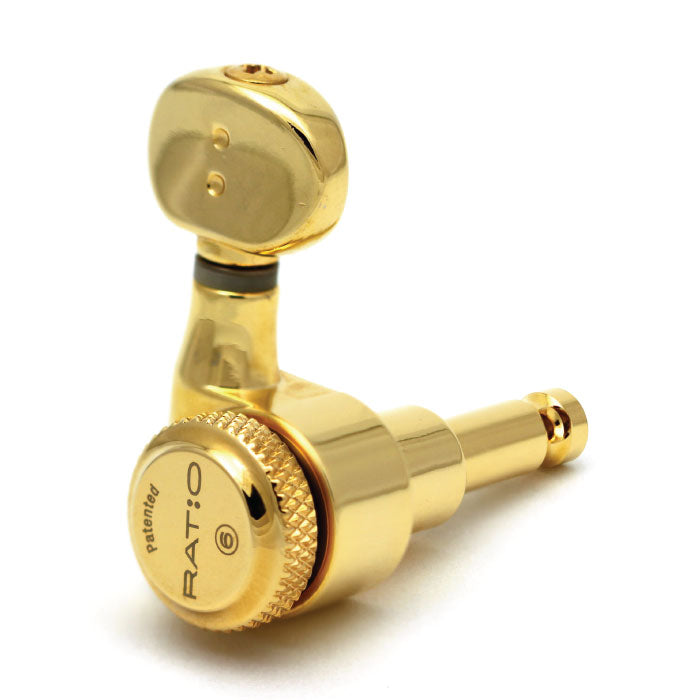

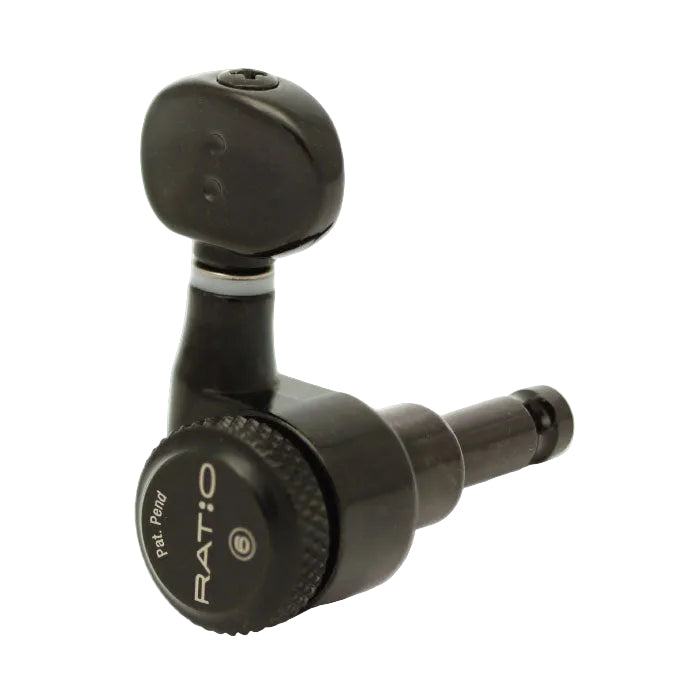

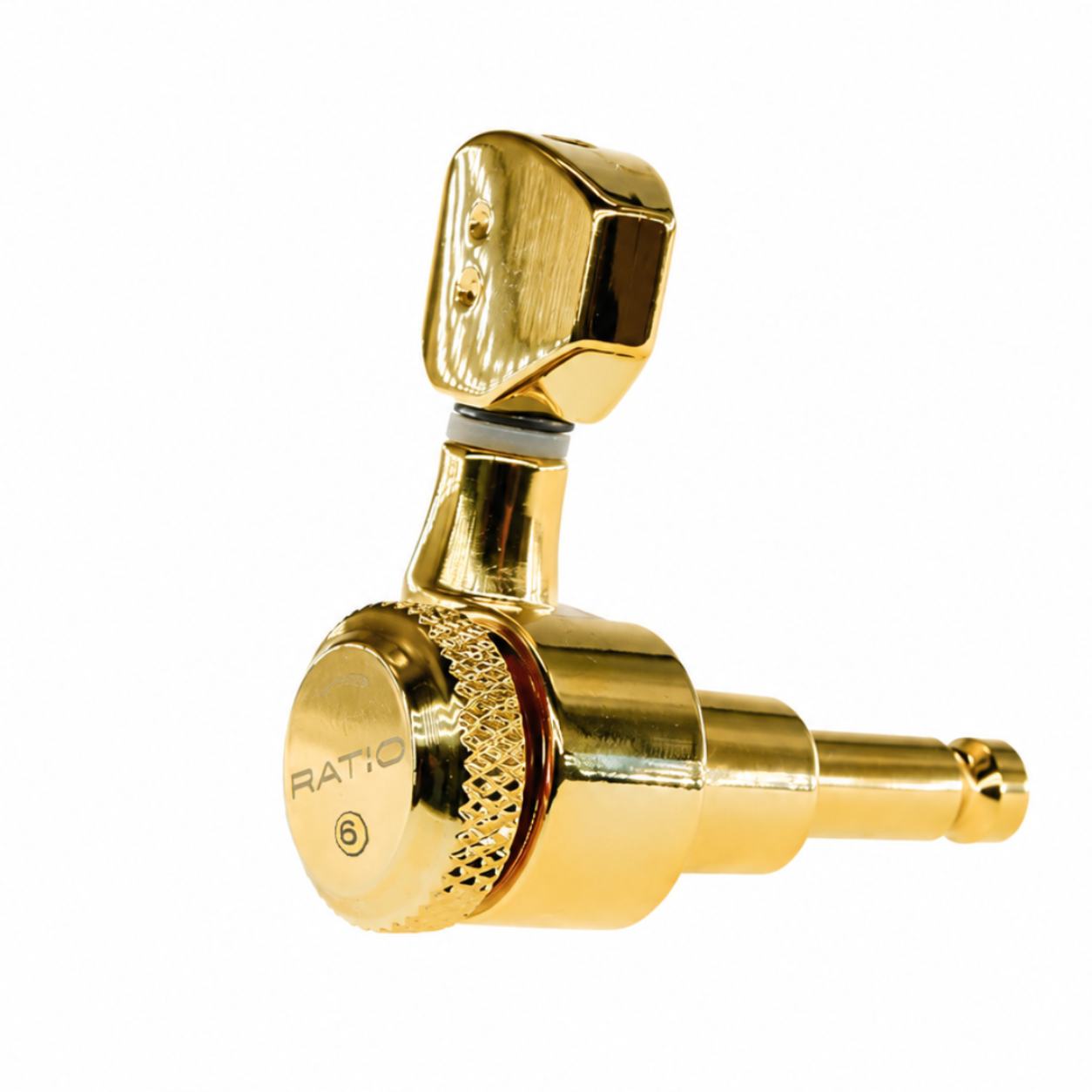

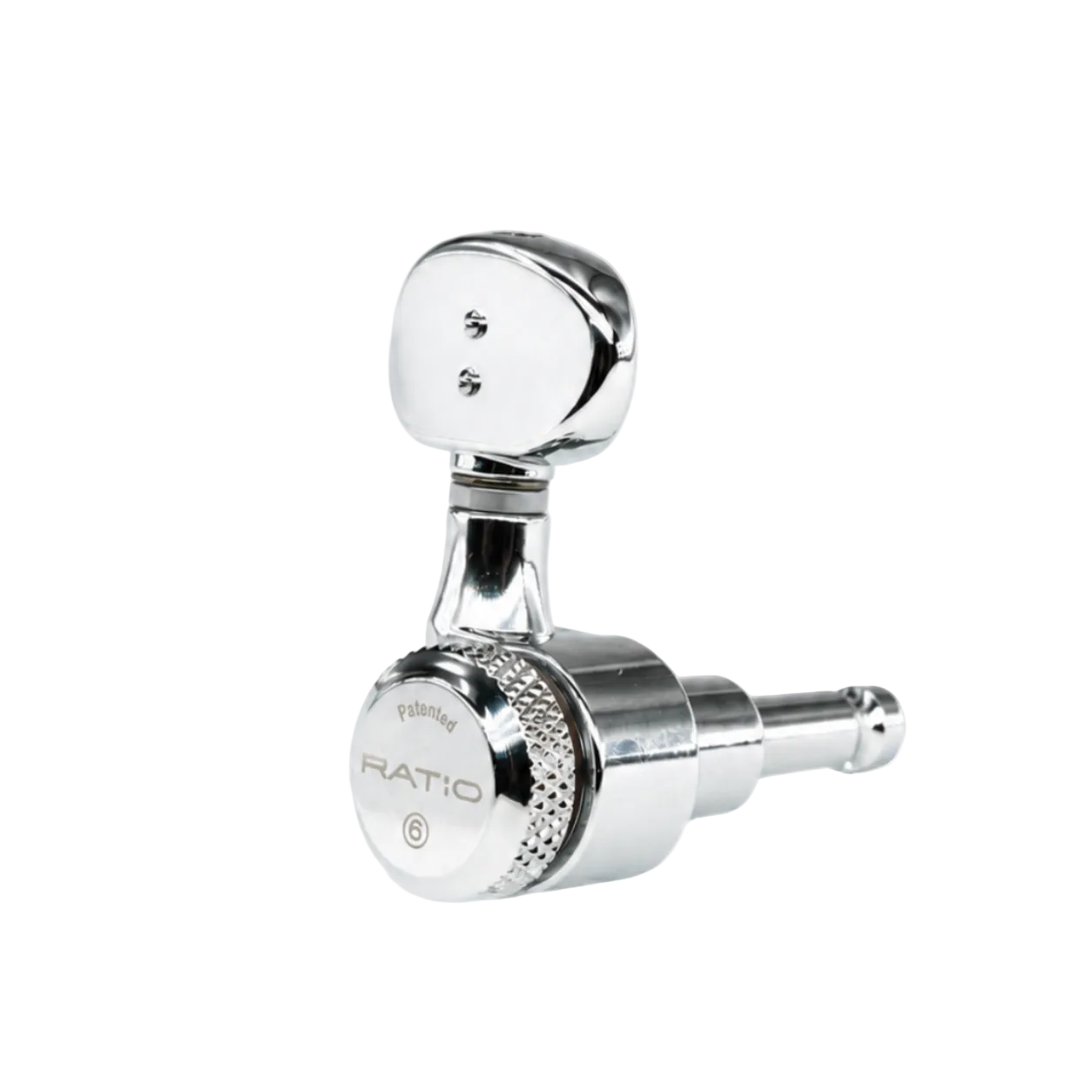

6-In-Line Ratio Electric Locking Machine Heads (PRL-8721, 8731, Select Finish and Button Style)

6-In-Line Ratio Electric Locking Machine Heads (PRL-8721, 8731, Select Finish and Button Style)

PRL-8721-C0

702725245833

$160.94 USD
$160.94 USD
Sale Sold out
Select Finish
Select Button Style

RATIO® patented gear technology
RATIO® - Calibrated Machine Heads incorporate different string gauges into the tuning equation.

From Low E to High E 39:1, 24:1, 20:1, 35:1, 20:1, 12:1.

We balanced the gear ratios to each string simplifying the tuning process.

With RATIO®, a half-turn is a semi-tone!

Every string reacts the same to any tuning adjustment. Predictable, precise tuning, on every string.

RATIO Machine Heads explanation video



The PRL-8721 and PRL-8731 are right-handed sets of Locking RATIO® Calibrated Machine Heads for electric guitars that use 6-in-line tuners.

It has a two-pin casing that can be used as is, or with our Patented InvisoMatch Mounting Plates [opens in new tab].

4 different sets of InvisoMatch mounting plates in brushed aluminum are included to make installation on most guitars fast and accurate by using your existing screw mounting holes.



6-in-line tuners set  Ratio Tuned Machine Heads: The New Standard In Tuning Technology



Gear ratio: unique for each string position - one turn-one tone
Peg holes diameter required: 13/32" (10mm)
String post diameter: 0.236" (6mm)
String post length to string hole: 0.910” (23mm)
Weight per single machine head: 0.083lbs (38g)
Weight per set of six: 0.496lbs (225g)
String diameter up to 72 gauge
Includes 6 machine heads, mounting screws and bushings
Includes complimentary 4 sets of aluminum mounting plates
