7 Strings: 7-In-Line Ratio Electric Locking Machine Heads Staggered Posts (PRL-9721-x7, PRL-9731-x7, Select Finish and Button)

7 Strings: 7-In-Line Ratio Electric Locking Machine Heads Staggered Posts (PRL-9721-x7, PRL-9731-x7, Select Finish and Button)

PRL-9721-C7

702725248599

Regular price $187.77 USD
Regular price Sale price $187.77 USD
Sale Sold out
Shipping calculated at checkout.
Select Finish
Select Button Style

RATIO® patented gear technology
RATIO® - Calibrated Machine Heads incorporate different string gauges into the tuning equation.

From Low B to High E 48:1, 39:1, 24:1, 20:1, 35:1, 20:1, 12:1.

We balanced the gear ratios to each string simplifying the tuning process.

With RATIO®, a half-turn is a semi-tone!

Every string reacts the same to any tuning adjustment. Predictable, precise tuning, on every string.

RATIO Machine Heads explanation video

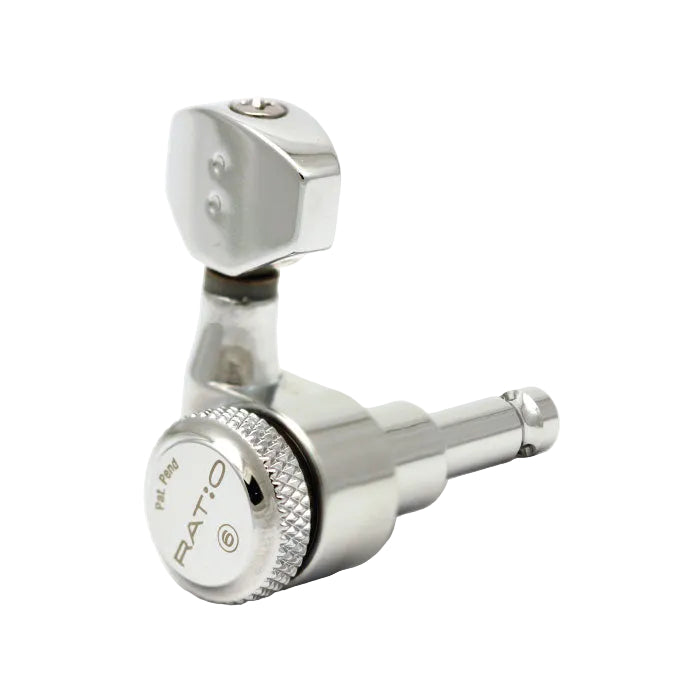

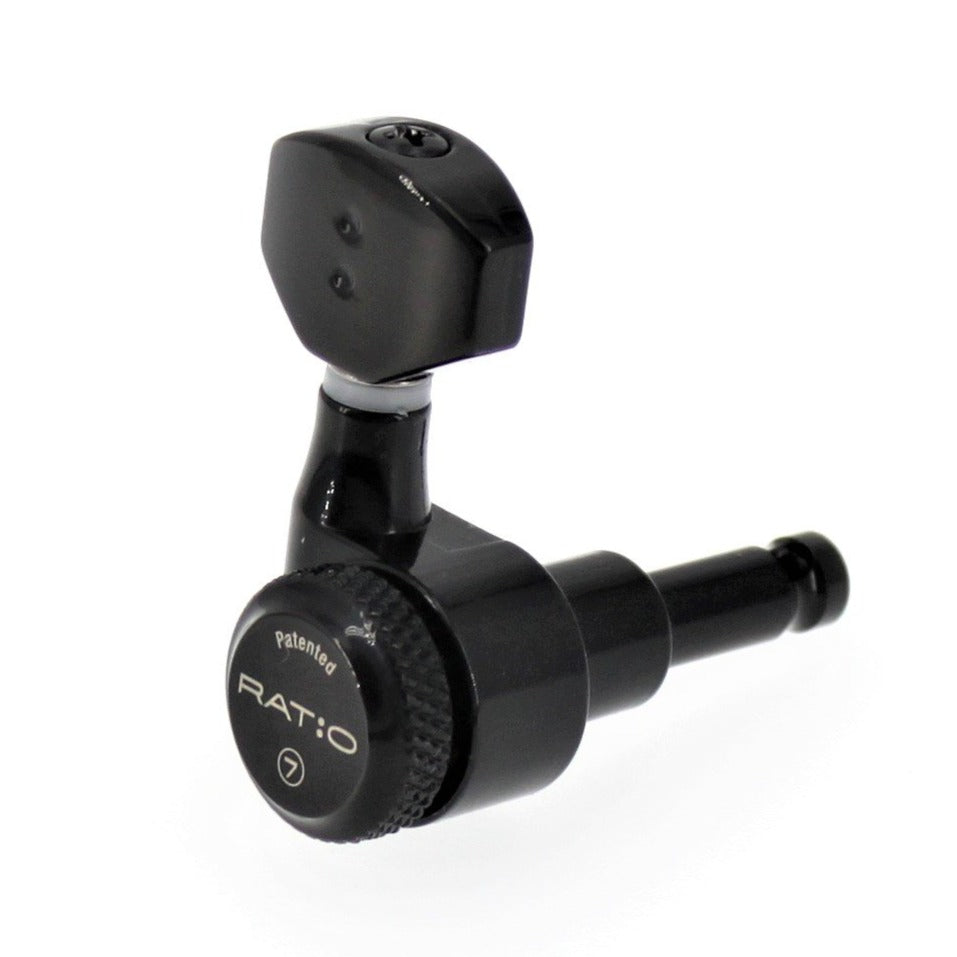

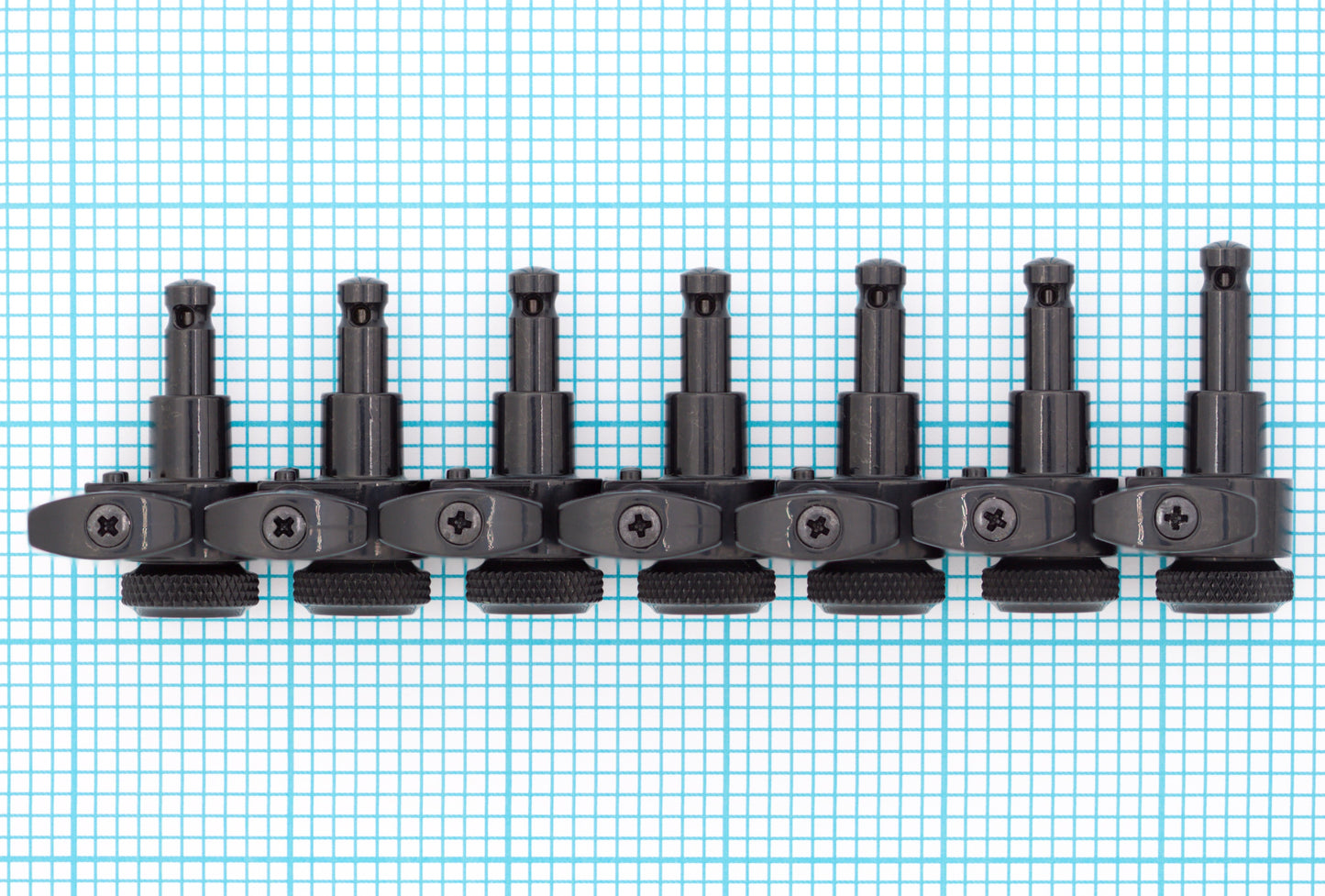

The PRL-9721-x7 and PRL-9731-x7 are the right-handed sets of Locking RATIO® Calibrated Machine Heads for electric guitars that use 7-in-line tuners with staggered posts (eliminates the need for a string tree).

It has a two-pin casing that can be used as is, or with our Patented InvisoMatch Mounting Plates [opens in new tab].

4 different sets of InvisoMatch mounting plates in brushed aluminum are included to make installation on most guitars fast and accurate by using your existing screw mounting holes.



6-in-line tuners set Staggered tuners set Ratio Tuned Machine Heads: The New Standard In Tuning Technology

Gear ratio: unique for each string position - one turn-one tone
Peg holes diameter required: 13/32" (10mm)
String post diameter: 0.236" (6mm)
String post length to string hole: 0.827” (21mm) - 0.787" (20mm) - 0.748" (19mm)
Weight per single machine head: 0.083lbs (38g)
Weight per set of six: 0.581lbs (266g)
String diameter up to 72 gauge
Includes 7 machine heads, mounting screws, and bushings
Includes complimentary 4 sets of aluminum mounting plates

UPGRADE TO PREMIUM PLATED INVISOMATCH View full details
5.0
Rated 5.0 out of 5 stars
Based on 183 reviews
Total 5 star reviews: 175 Total 4 star reviews: 8 Total 3 star reviews: 0 Total 2 star reviews: 0 Total 1 star reviews: 0
100%would recommend these products
