6-In-Line Ratio Electric Locking Machine Heads Staggered Posts (PRL-9721, Select Finish and Button Style)

PRL-9721-C0
5.0
Rated 5.0 stars
7 Reviews

Select Finish
Select Button Style

SCIENCE BEHIND RATIO:

RATIO® patented gear technology
RATIO® - Calibrated Machine Heads incorporate different string gauges into the tuning equation.

From Low E to High E 39:1, 24:1, 20:1, 35:1, 20:1, 12:1.

We balanced the gear ratios to each string simplifying the tuning process.

With RATIO®, a half turn is a semi-tone!

Every string reacts the same to any tuning adjustment. Predictable, precise tuning, on every string.

RATIO Machine Heads explanation video

Description:

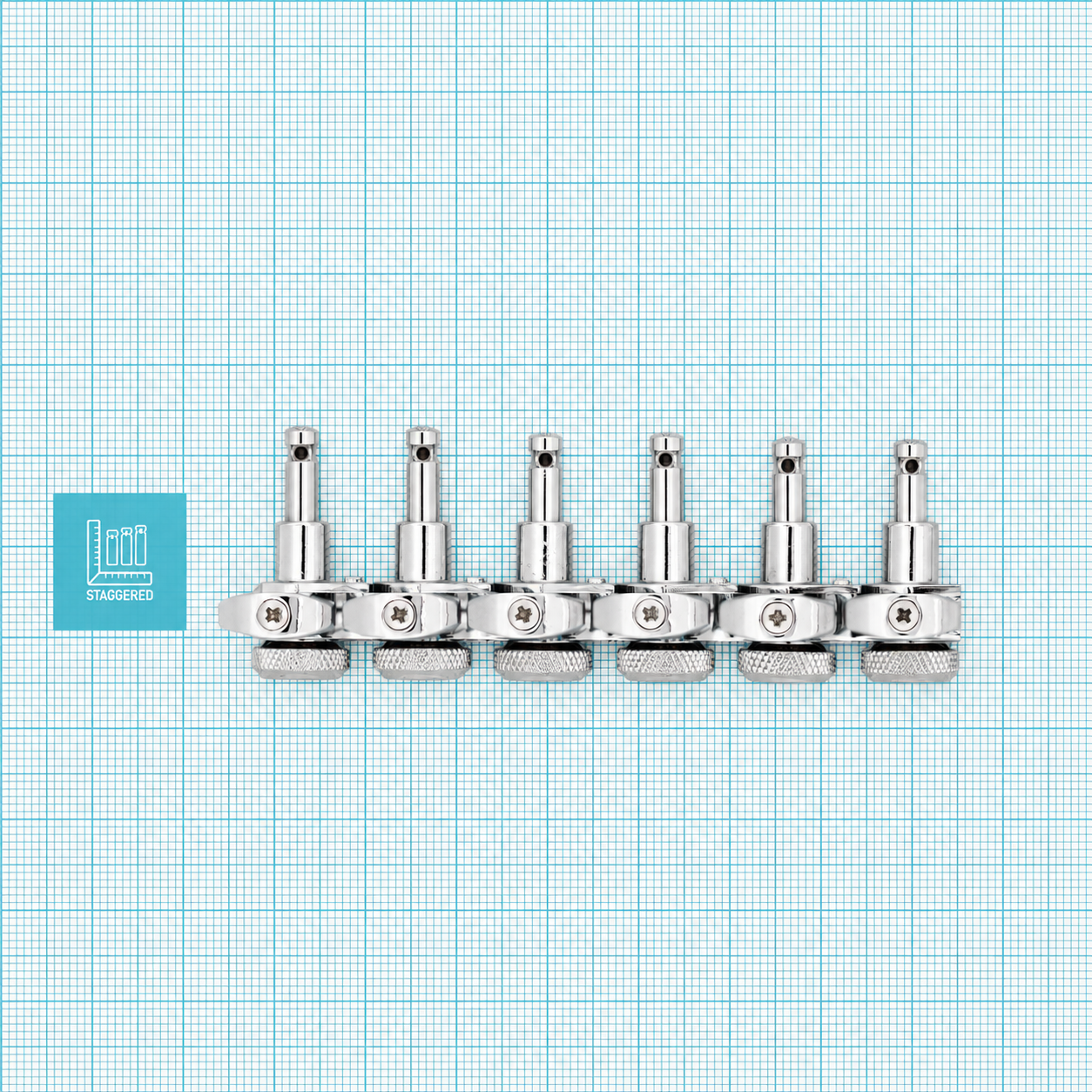

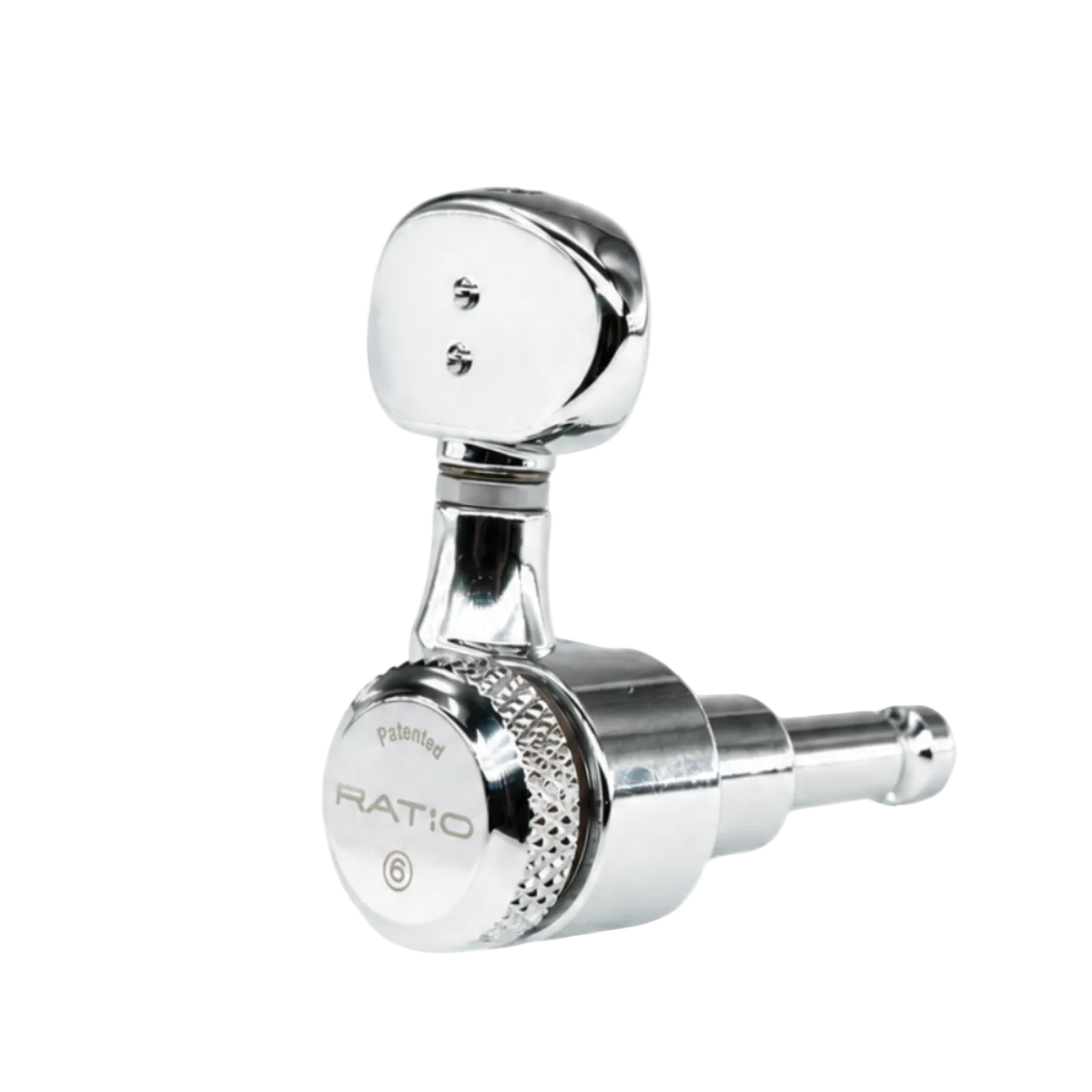

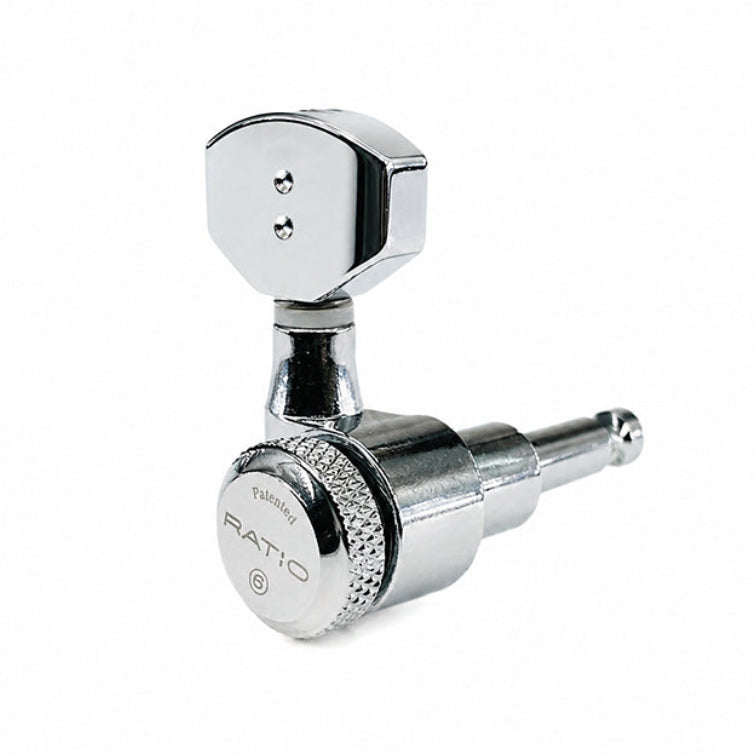

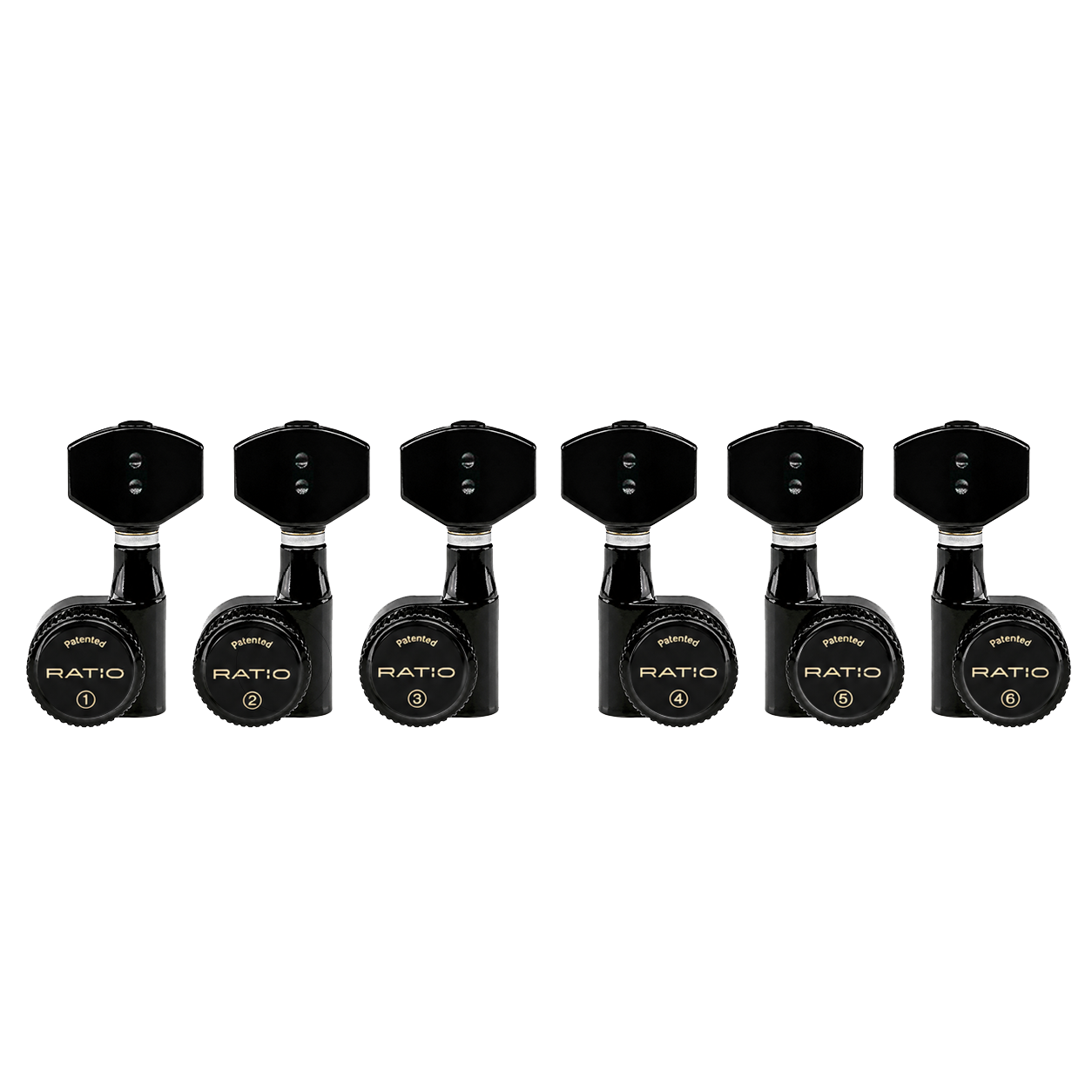

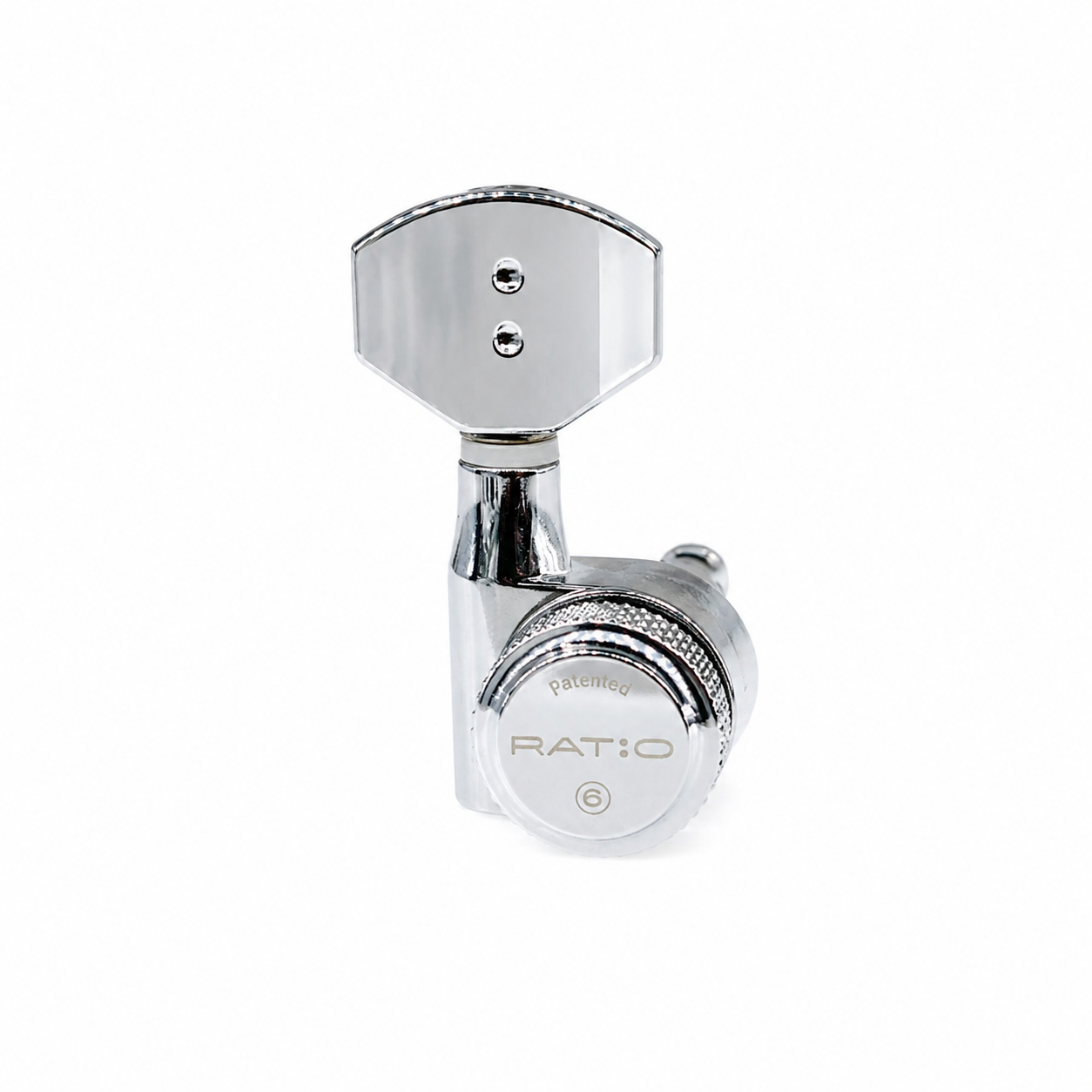

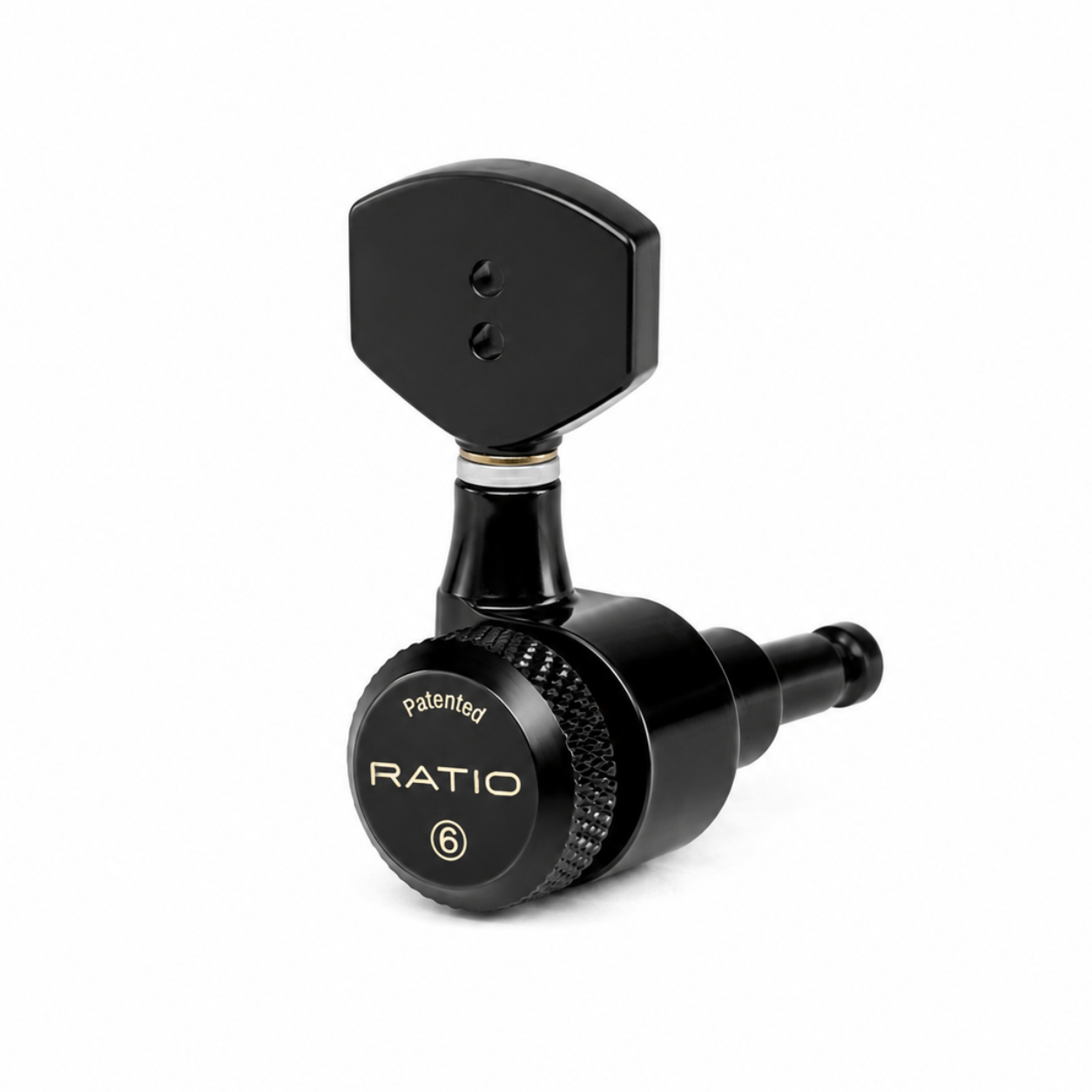

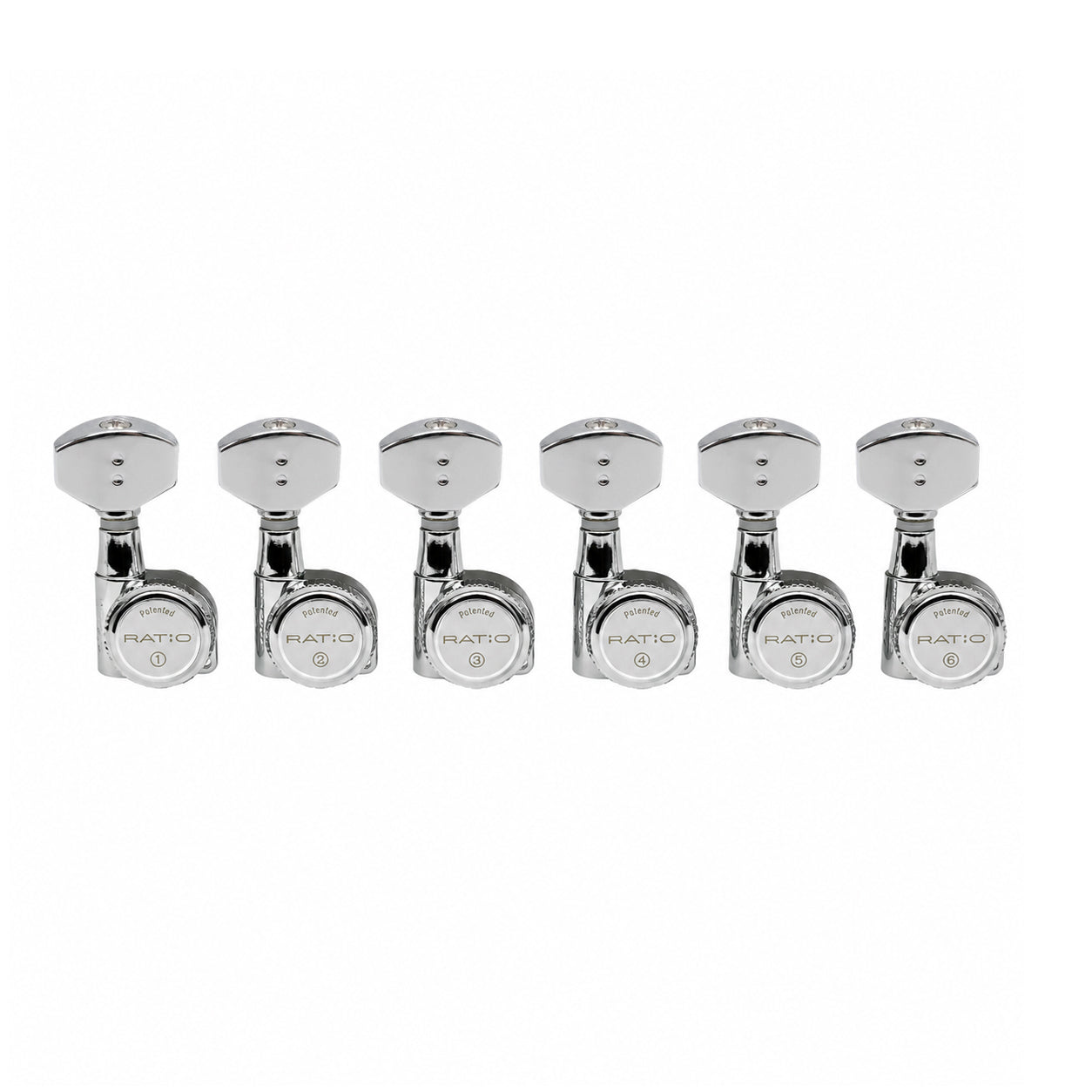

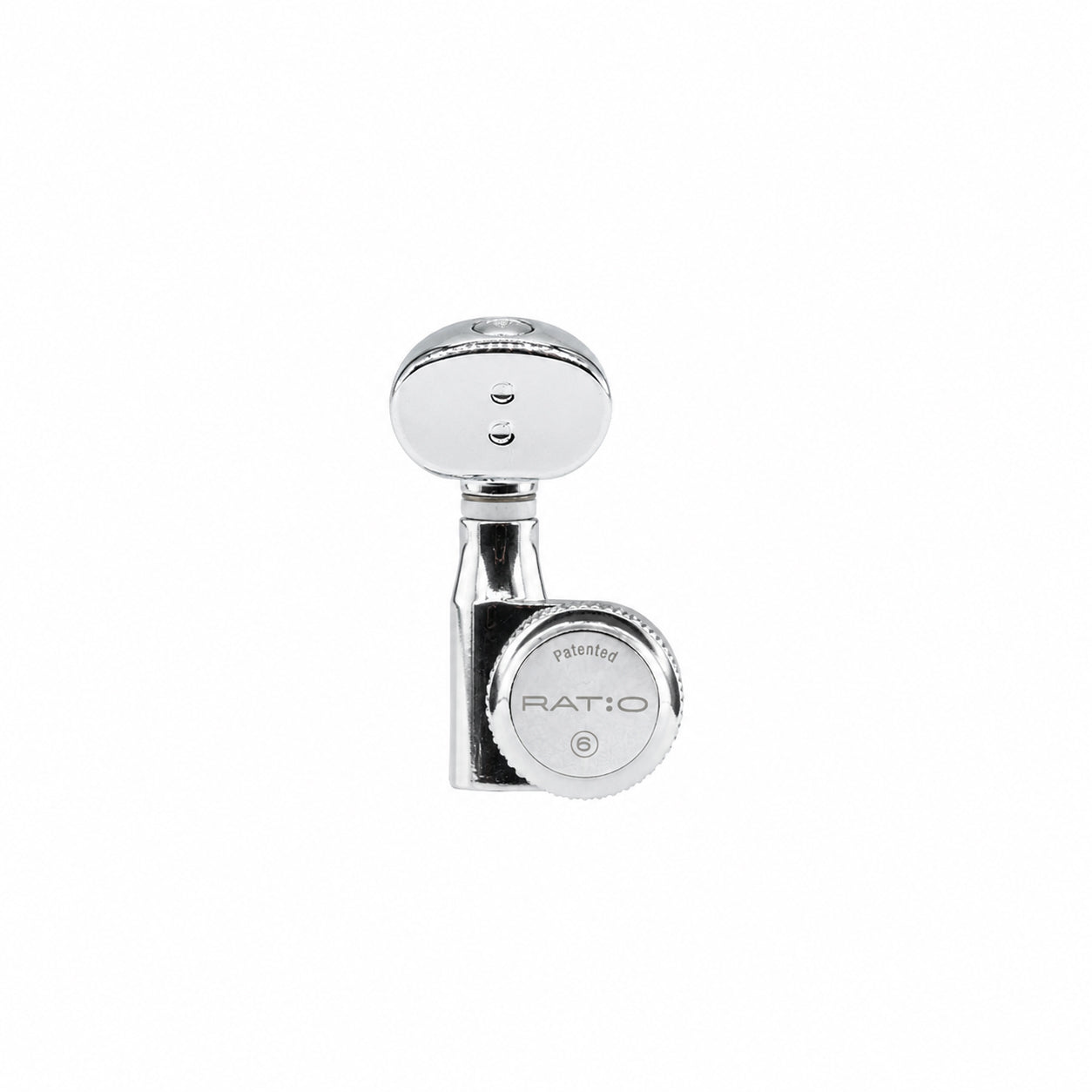

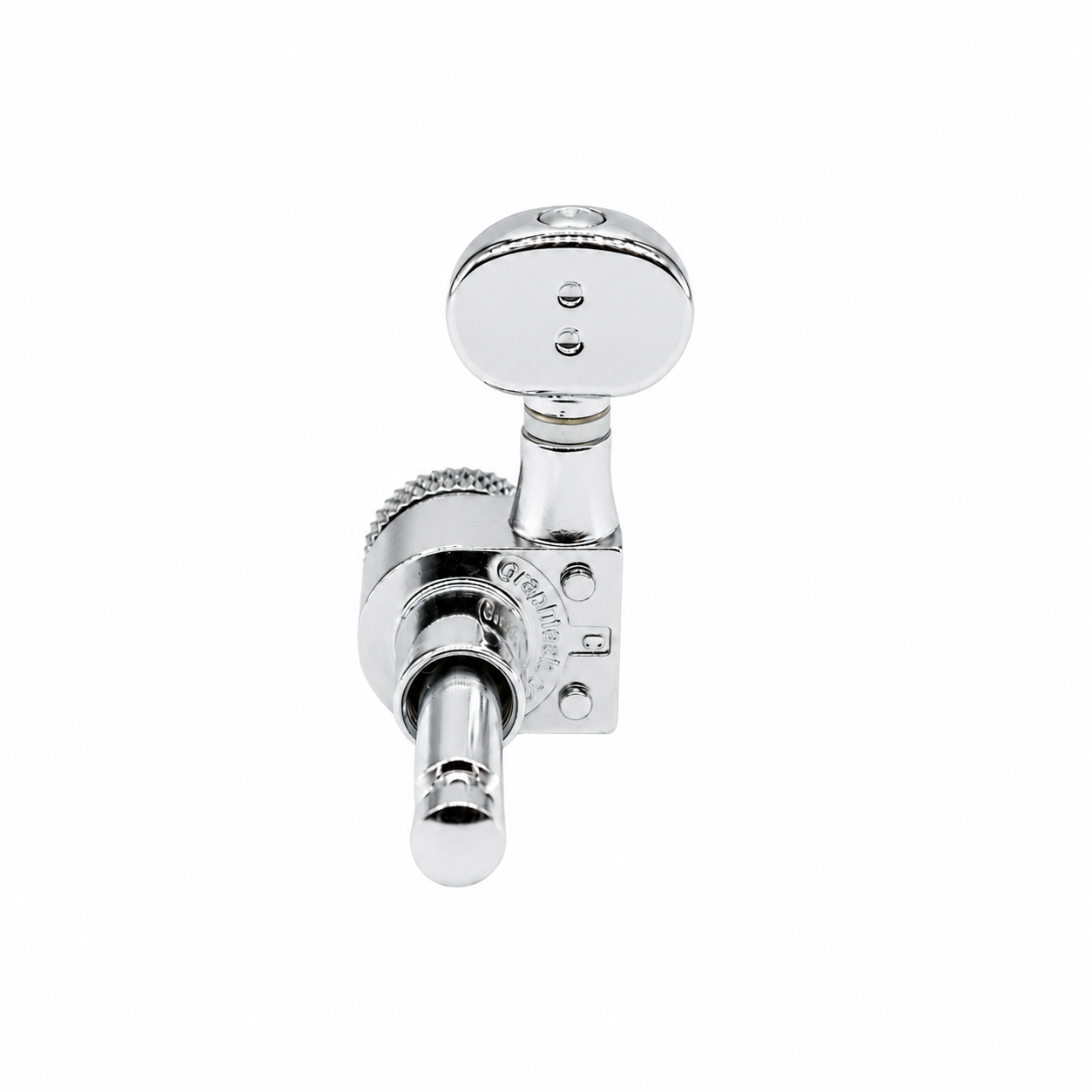

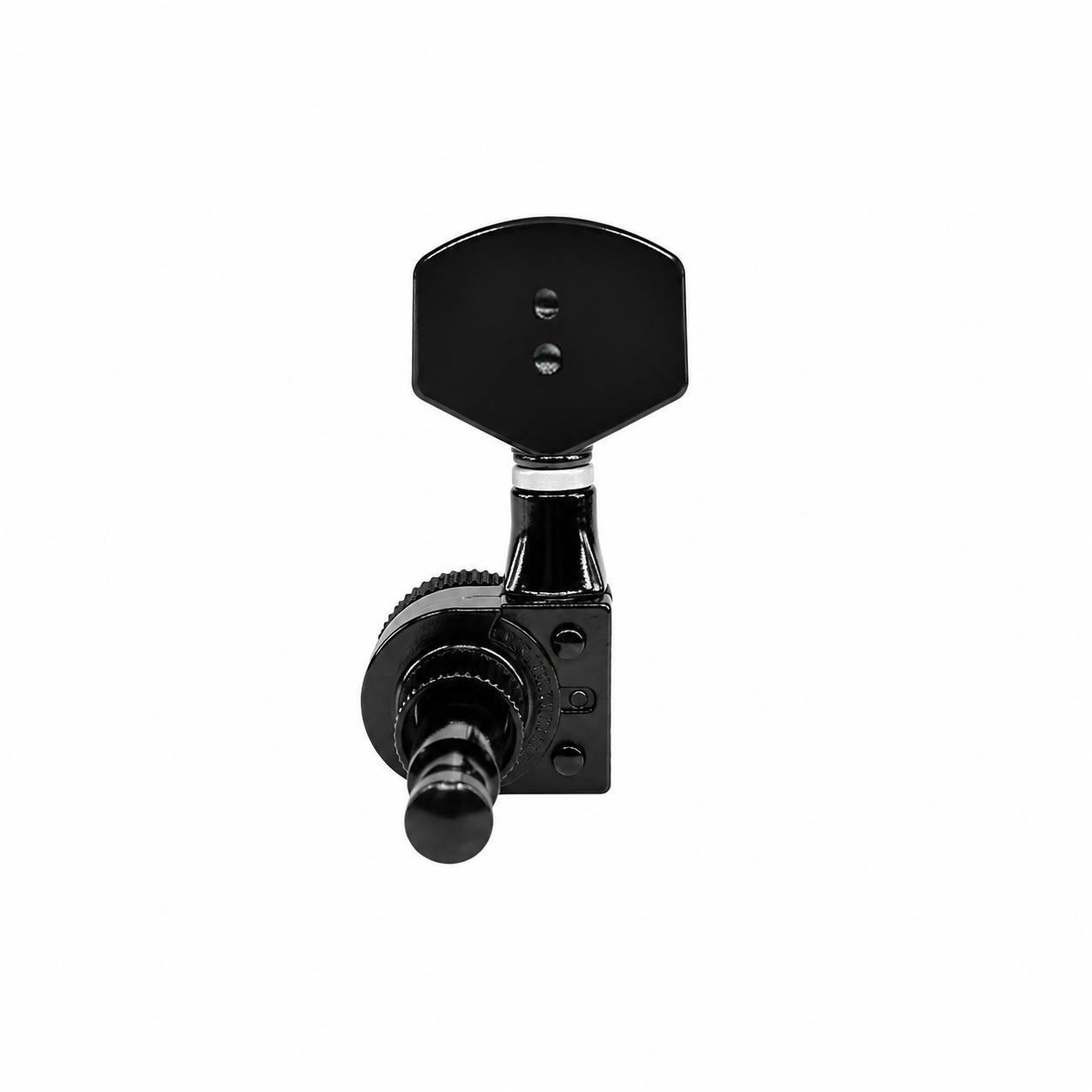

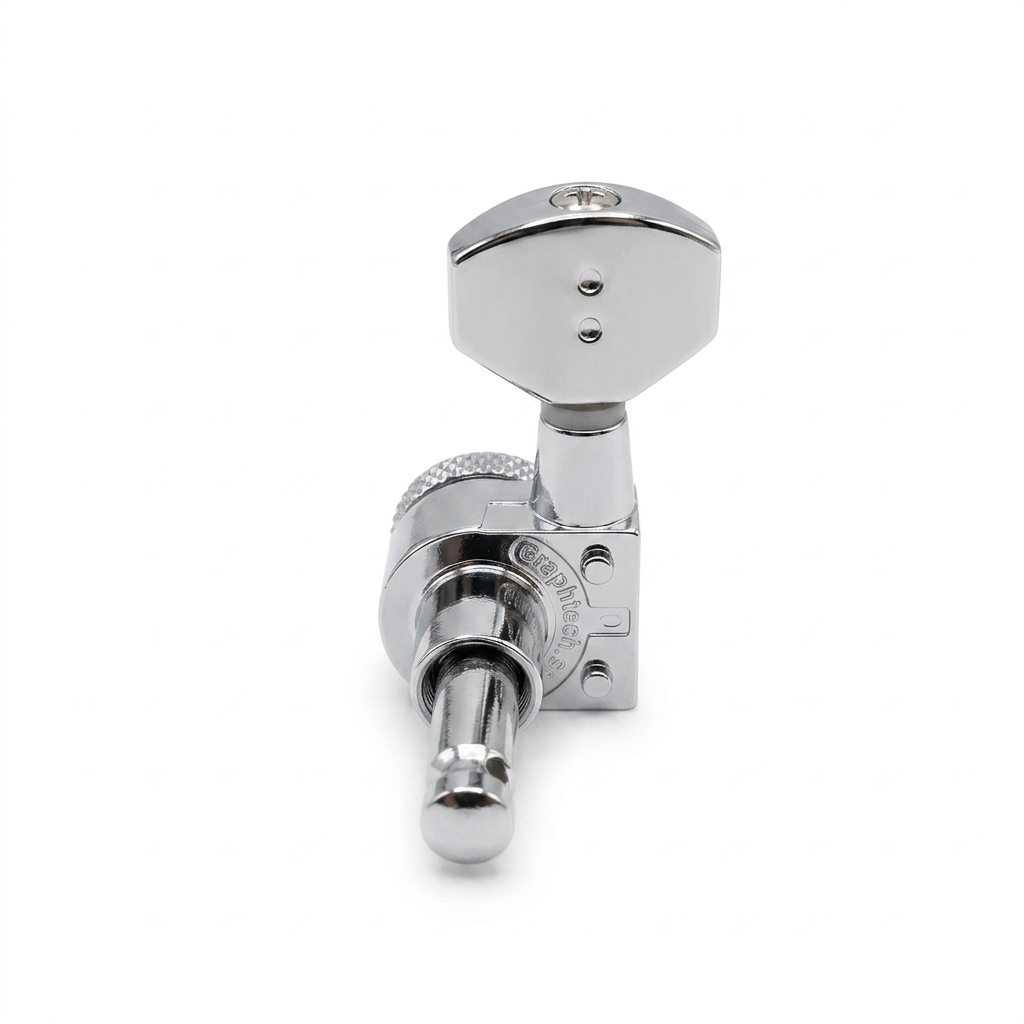

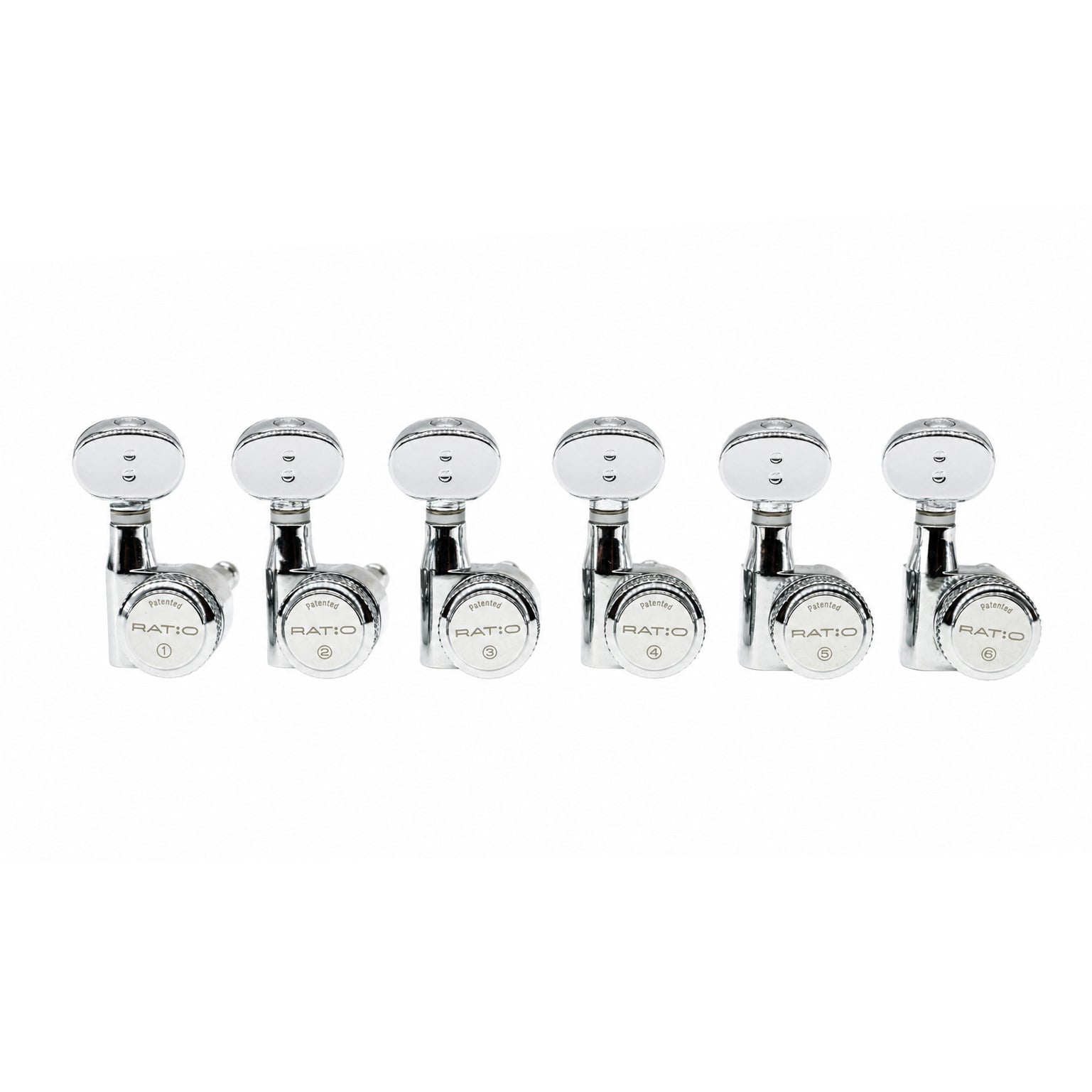

The PRL-9721 is a right-handed set of Locking RATIO® Calibrated Machine Heads for electric guitar that use 6-in-line tuners with staggered posts (eliminates the need for a string tree).

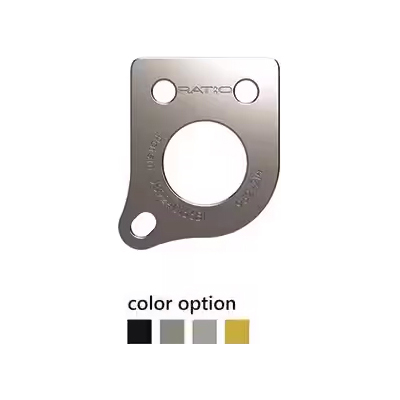

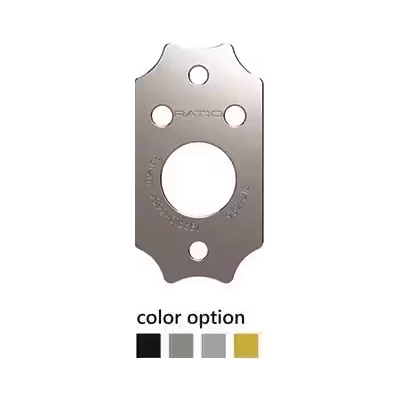

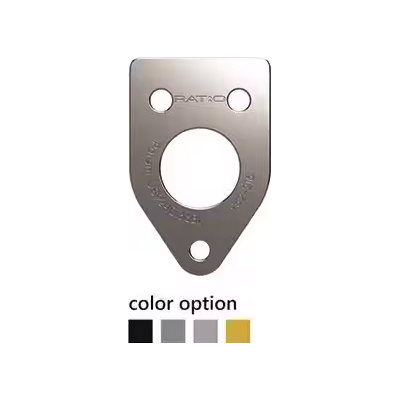

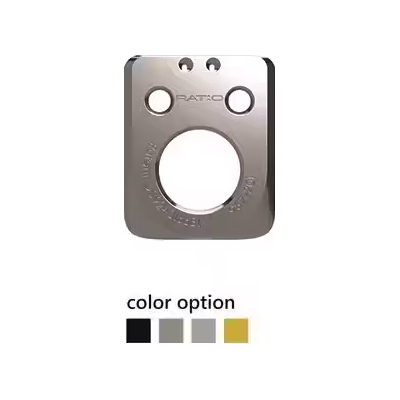

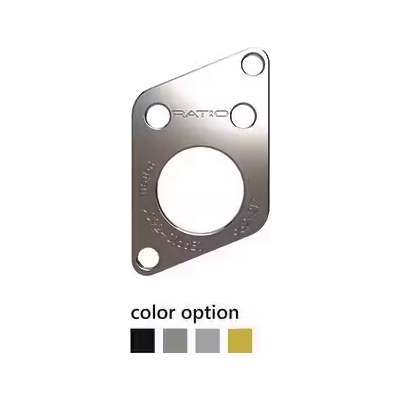

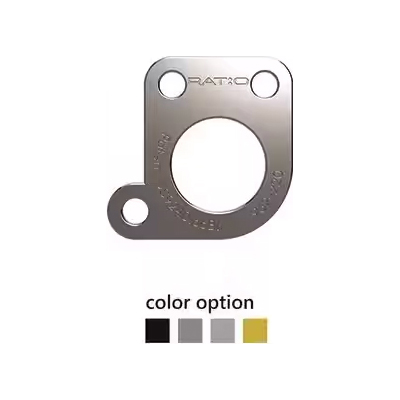

It has a two pin casing that can be used as is, or with our Patented InvisoMatch Mounting Plates [opens in new tab].

4 different sets of InvisoMatch mounting plates in brushed aluminum are included to make installation on most guitars fast and accurate by using your existing screw mounting holes.



6-in-line tuners set Staggered tuners set Ratio Tuned Machine Heads: The New Standard In Tuning Technology



Specification:

Gear ratio: unique for each string position - one turn-one tone
Peg holes diameter required: 13/32" (10mm)
String post diameter: 0.236" (6mm)
String post length to string hole: 0.827” (21mm) - 0.787" (20mm) - 0.748" (19mm)
Weight per single machine head: 0.083lbs (38g)
Weight per set of six: 0.496lbs (225g)
String diameter up to 72 gauge
Includes 6 machine heads, mounting screws and bushings
Includes complimentary 4 sets of aluminum mounting plates

GUIDES:



Staggered Ratio Measurements.pdfRatio Installation Guide.pdfRatio Installation Guide Video



REVIEWS:

Nacho

Reviewed in the United States on February 16, 2020

Amazon Verified Purchase





5.0
Rated 5.0 stars
Based on 7 reviews
Total 5 star reviews: 7 Total 4 star reviews: 0 Total 3 star reviews: 0 Total 2 star reviews: 0 Total 1 star reviews: 0
100%would recommend this product
Customer-uploaded media carousel. Press left and right arrows to navigate. Press space or enter to open more details.
Slide 1 selected
7 reviews
  • EM
    Ed M.
    Verified Buyer
    I recommend this product
    Rated 5 stars
    6 days ago
    Excellent tuners, possibly the best on the market right now - if you like easily and precisely staying in tune

    I had previously upgraded my stock tuners on my Tele to locking Fender tuners. Decent enough hardware but there was a small amount of mechanical slop in the gears. Not a lot, but some. The gear ratio meant it was slow to get it precisely in tune.

    It's perfectly doable to go down and then tune up to pitch to keep tension on the string, but doing that is slow because the imprecise gearing and mechanical slop means you have to either take a few tweaks, or else slowly creep up to not overshoot. I use a strobe tuner and play clean chordal tones so being slightly out of tune is noticeable.

    The new Ratio tuners are noticeably more consistent and its much faster to hit exact tune in one twist. No more overshoot or creeping up to tune. Good stuff. Works just as advertised.

  • VA
    Vernon A.
    Verified Buyer
    I recommend this product
    Rated 5 stars
    4 weeks ago
    Tuners

    Will stay in tune even changing climate. Thanks

  • TB
    Tim B.
    Verified Buyer
    I recommend this product
    Rated 5 stars
    1 month ago
    Always good

    Really love these. I use them in all my builds. Easy to install and tuning is a breeze

  • JO
    Joe O.
    Verified Buyer
    I recommend this product
    Rated 5 stars
    1 month ago
    All Graph Tech Acoustasonic Strat

    These tuners (and a tusq tree) completed the upgrade to all Graph Tech hardware on my new Acoustasonic Strat. These guitars ship with Graph Tech tusq saddles and nuts but have regular Fender tuners. I installed the tuners yesterday and am very happy with how they work, sound (more sustain) and stay in tune. This is my first experience with the ratio tuners and I really like the difference they make on tuning, especially the "G" string. For the final touch, I swapped out the metal string tree with a Graph Tech tusq tree. I will be ordering ratio tuners for my other guitars now.

  • JB
    James B.
    Verified Buyer
    I recommend this product
    Rated 5 stars
    1 month ago
    Love these tuners

    These tuners are fantastic. My Squier finally stays in tune. I will be replacing tuners on a Les Paul and an SG, I will definitely be using Graph Tech Ratio Tuners !
