6 String 3+3 Bass Ratio Y-Style Button (PRB-6330, Select Finish)

PRB-6330-C0
Select Finish

SCIENCE BEHIND RATIO:

RATIO® patented gear technology
RATIO® - Calibrated Machine Heads incorporate different string gauges into the tuning equation.

From Low B to C - 48:1, 36:1, 30:1, 20:1, 18:1, and 16:1.

We balanced the gear ratios to each string simplifying the tuning process.

With RATIO®, a half turn is a semi-tone!

Every string reacts the same to any tuning adjustment. Predictable, precise tuning, on every string.



Bass Ratio animation

Description:

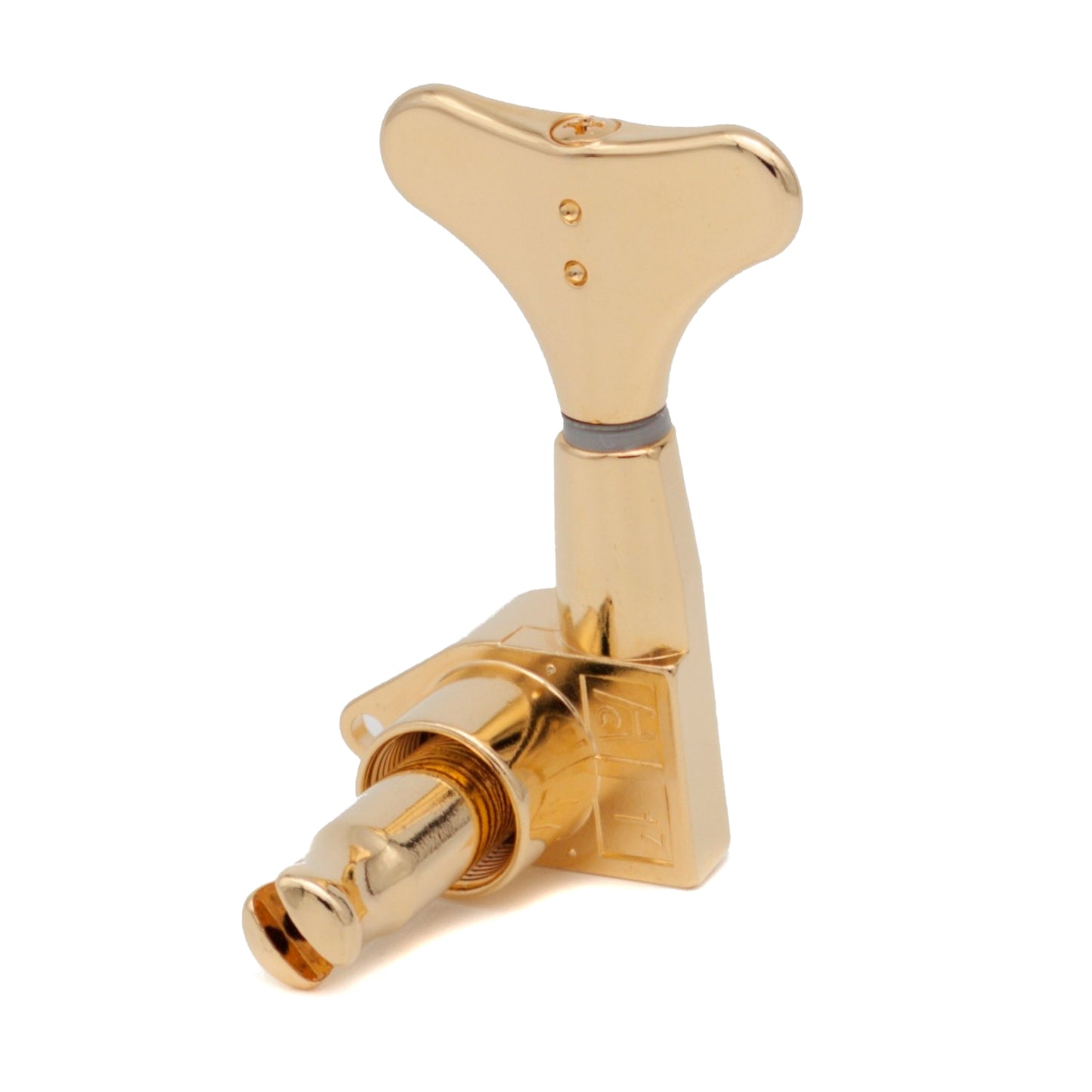

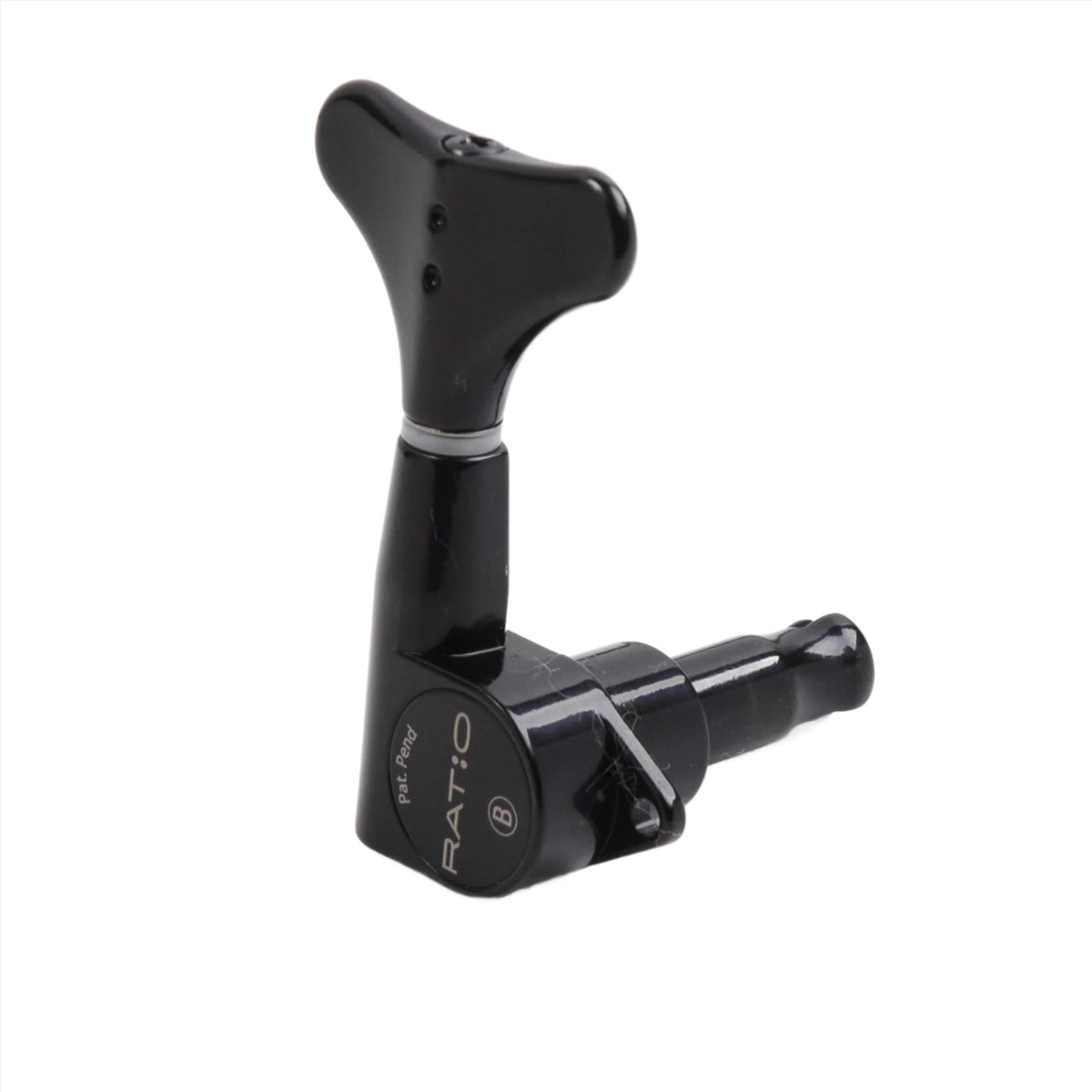

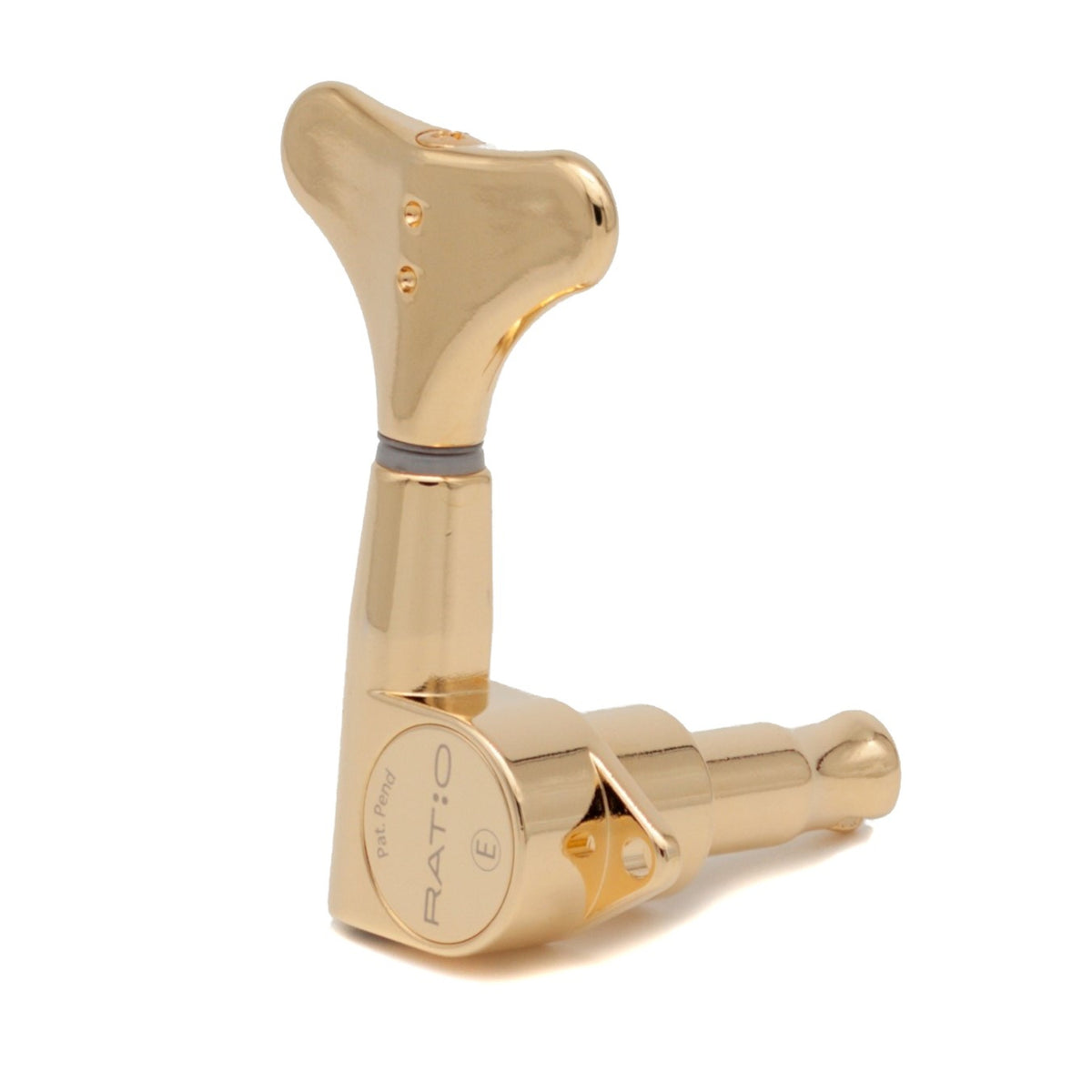

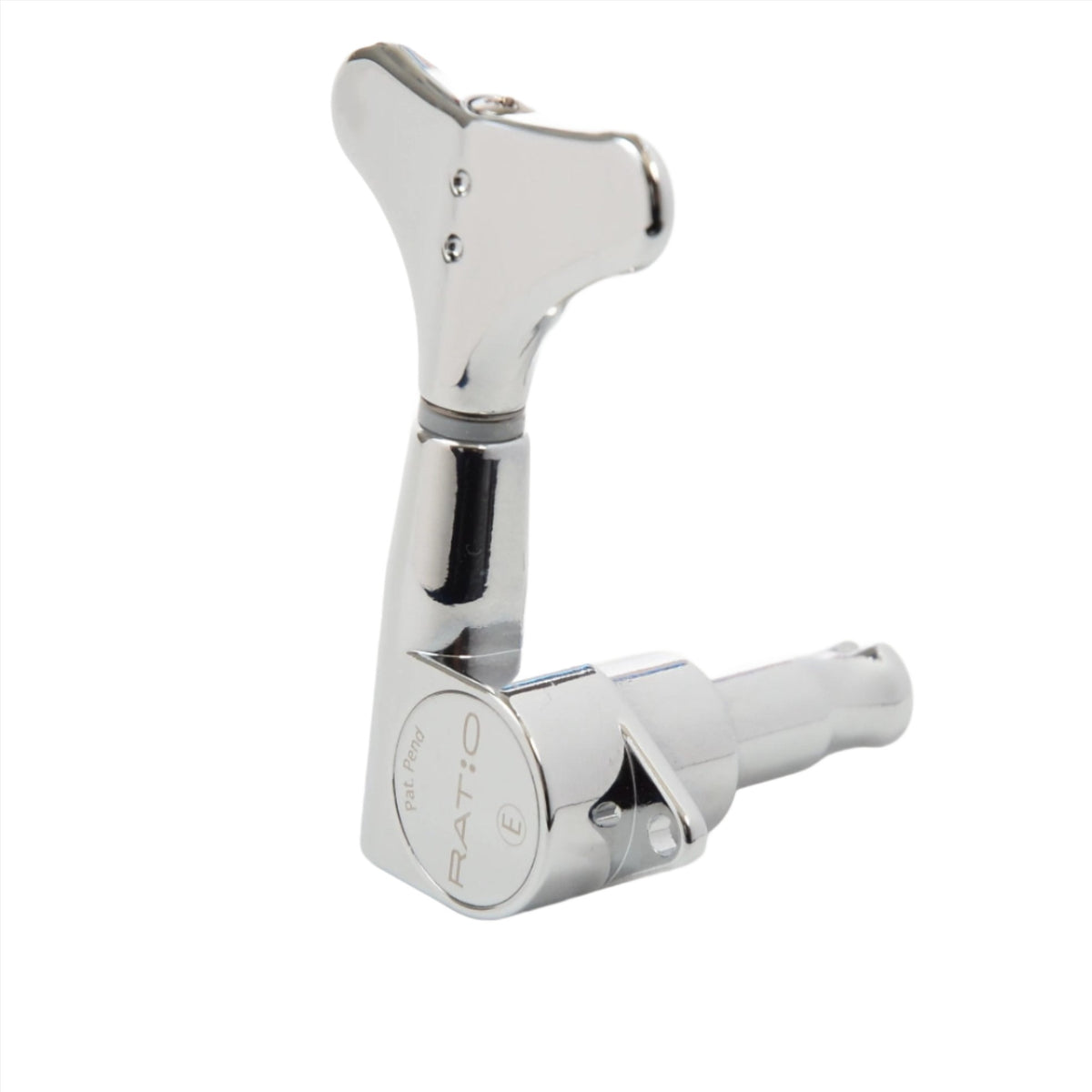

The PRB-6330 is a right-handed set of RATIO® Calibrated Machine Heads for BASS that use 3 x 3 configuration.



In order to achieve the higher gear ratio's, Ratio's are the world's first machine heads using a double envelope gear design with a hardened steel gear. Amazingly smooth and super strong.



Headstock Configuration 3 x 3  Ratio Tuned Machine Heads: The New Standard In Tuning Technology



Specification:

Gear ratio: unique for each string position - one turn-one tone
Peg holes diameter required: 35/64" (14mm)
String post diameter: 0.547" (13.9mm)
String post length to string hole: 1.030” (26.1mm)
Weight per single machine head: 1.86oz (53g)
Weight per set of four: 11.16oz (318g)
String diameter up to 98 gauge

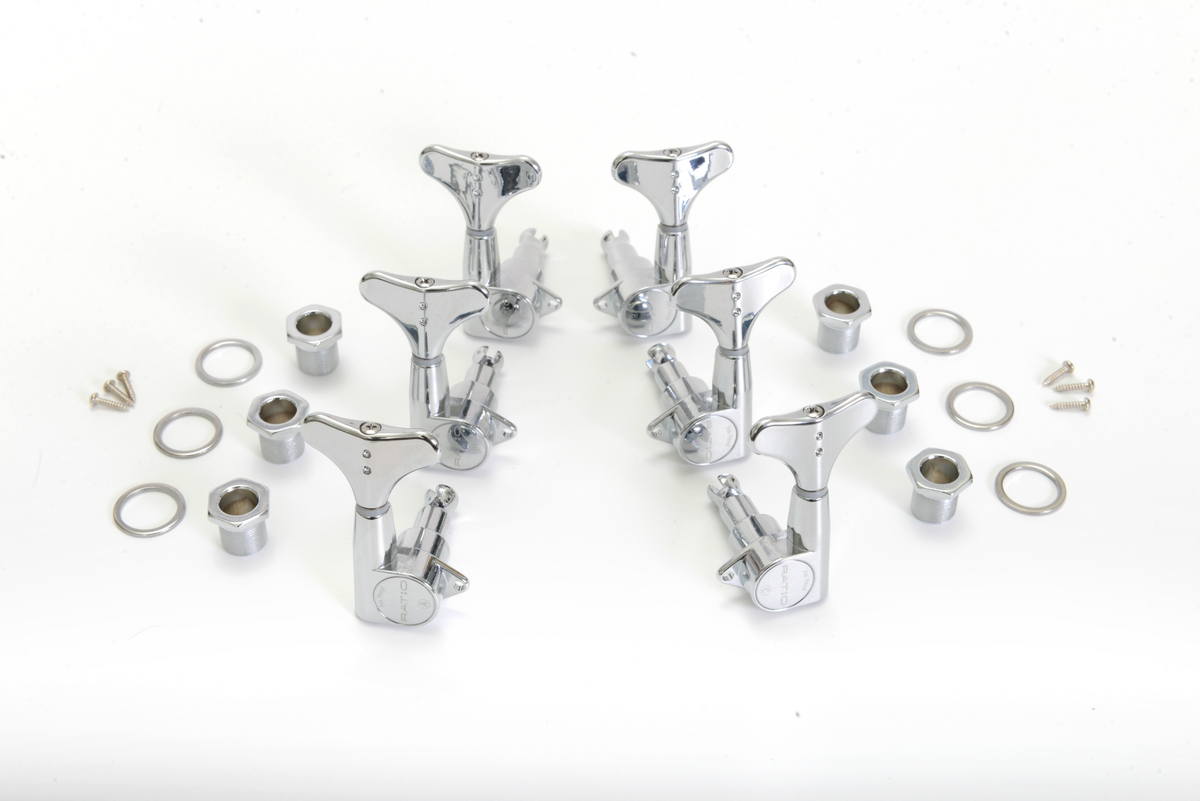

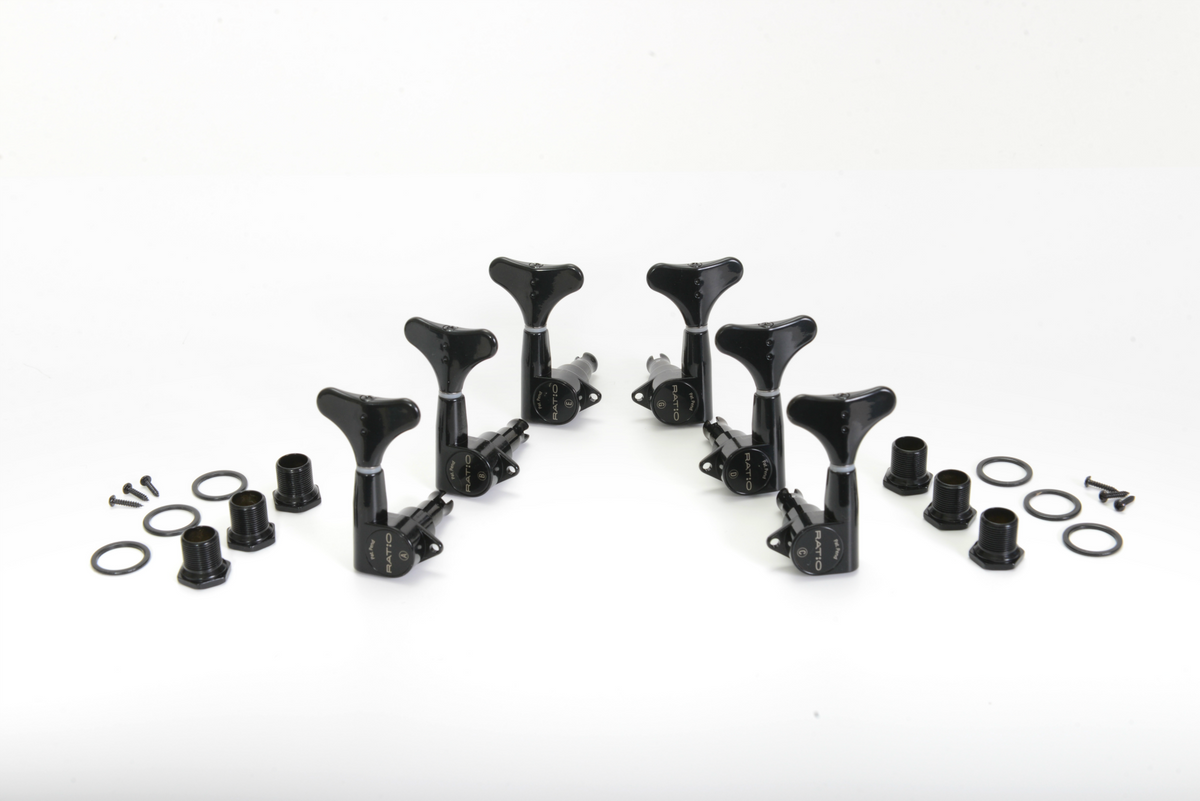

Includes 6 machine heads, mounting screws and bushings



GUIDES:

Staggered Ratio Measurements.pdf Ratio Installation Guide.pdf Ratio Installation Guide Video

REVIEWS:



Our Bass Ratio rated 5 stars on Sweetwater.

Sweetwater Rating 5.0
