ghost Pickups For Acoustic Guitar Bridges (PN-9277-00)
ghost Pickups For Acoustic Guitar Bridges (PN-9277-00)
PN-9277-00
702725249312
Couldn't load pickup availability

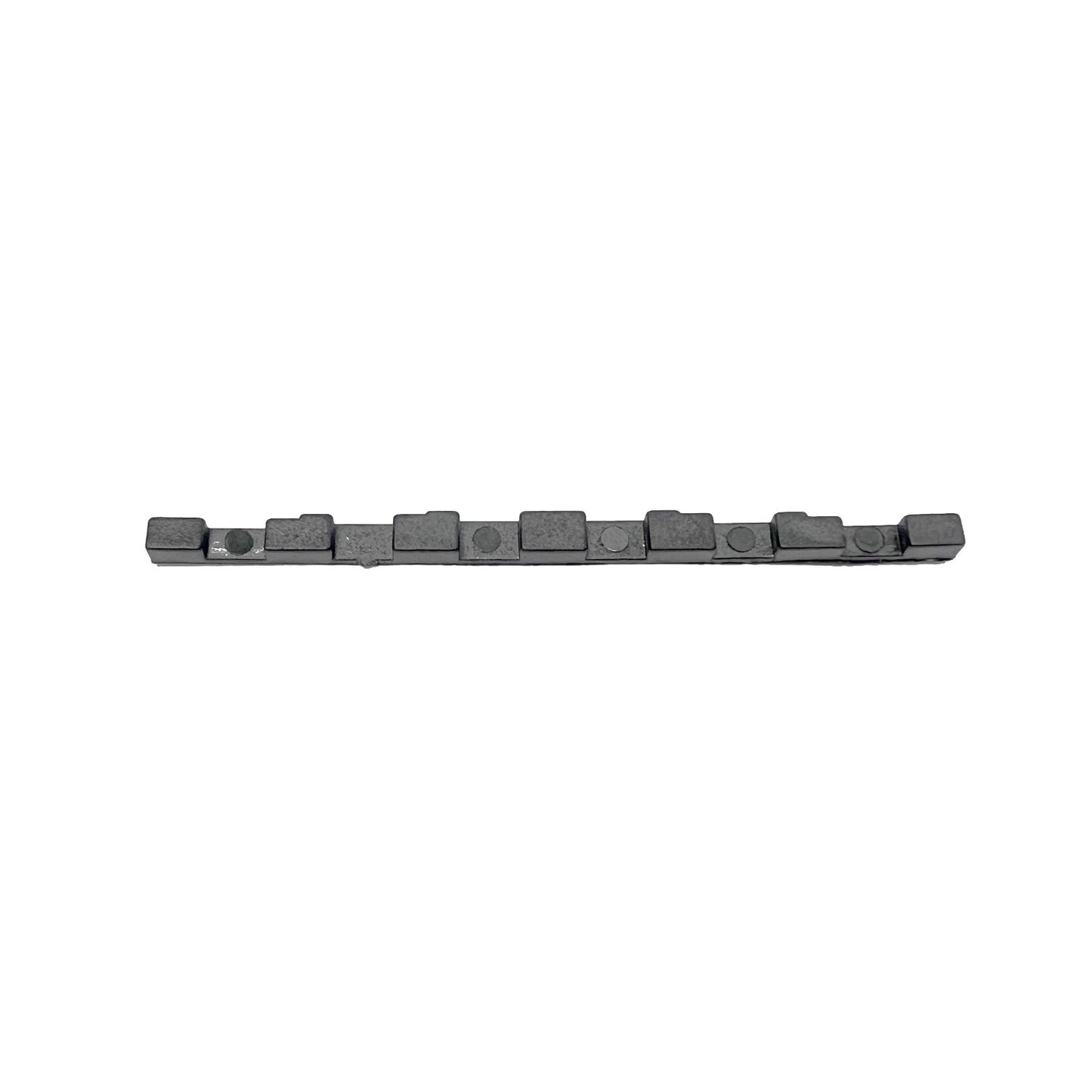

The PN-9277-00 is a set of 6 ghost-loaded saddles designed to fit into a standard 1/8” thick acoustic guitar bridge.
Each set comes with a shim to provide a radius and height extension while still allowing for the wire to pass through.
Works with any of our ghost preamp kits along with other companies' preamps.
Saddle dimensions
Length: 9.79mm (0.385”)
Width: 3.26mm (0.128”)
Height: 6.01mm (0.236”)
Shim dimensions
Length: 68.47mm (2.695”)
Width: 3.80mm (0.149”)
Height: 3.20mm (0.126”)
| Measure | Length | Thickness | Height | Str.Sp |
| inches | 0.385” | 0.128” | 0.236” | |
| mm | 9.79 | 3.26 | 6.01 |
R-
View full details
What are the String Saver and TUSQ Materials in Saddles?
String Saver Saddles
String Saver saddles are made with a unique combination of materials made to enhance tone and dramatically reduce string breakage. Each saddle is permanently lubricated.
Lubrication formula in String Savers eases the grip between the saddle and string, spreading the stress over a greater portion of the string, just enough to drastically reduce string breakage.
Our patented String Saver Originals are made entirely of our String Saver material and give you a very balanced tone across the spectrum. People who were breaking one or two strings a night have contacted us after using String Savers and are amazed that they go weeks and months without breaking a string!
String Saver Classics are made with an extremely high quality steel saddle with our patented String Saver material inserted in the string ramp. String Saver Classics preserve the classic look of a metal saddles while freeing you from the problem of breaking strings.
TUSQ Saddles
TUSQ Saddles have a rich tone without the inconsistency found in ivory, bone, and other natural materials. Bone and ivory have hard and soft spots (grain) throughout each piece, hampering the consistent transfer of vibrations to the guitar top. TUSQ saddles are designed to transfer the right frequencies more efficiently from the string to the guitar body.
