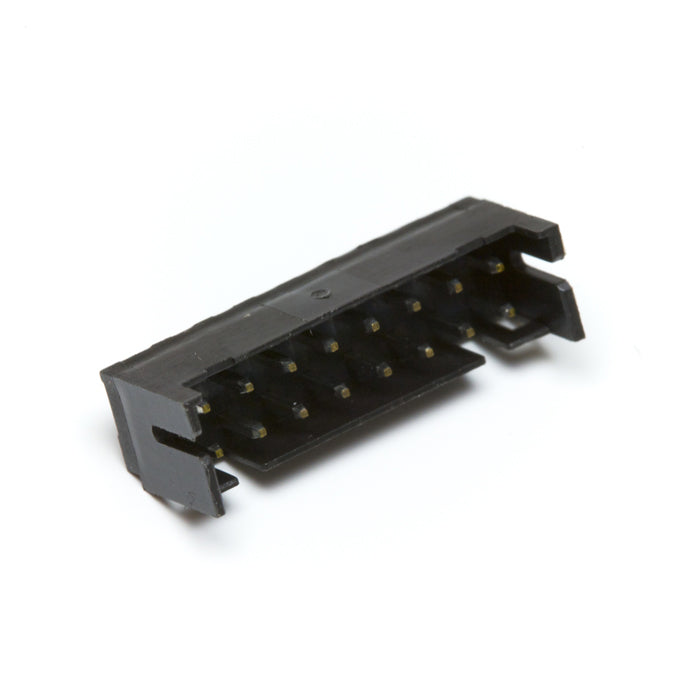

Ghost by Graph Tech Model # 5017-00 Summing Board

Ghost by Graph Tech Model # 5017-00 Summing Board

PE-5017-00

702725240043

$4.73 USD
$4.73 USD
Sale Sold out
Shipped within 1-2 business days.

R-

Summing Board connects all the GHOST pickups together for into the Acousti-Phonic preamp.

An additional summing board can be used to increase the number of inputs (or strings) that can be used with the Acousti-Phonic preamp.

This component is included with the 0240-00, 0340-00, 0680-00, and 0780-00.

Note: Some instruments may require modifications to accommodate piezo wires.

See our complete installation manual for more specifics or contact us directly (support@graphtech.com).


Specs

The Summing Board connects all the pickup hot wires, and pickup grounds together for input to the Acousti-Phonic.

Not required when installing the Hexpander preamp to access midi and virtual controllers.

View full details

What is the Difference in TUSQ Materials?

TUSQ

TUSQ nuts have a rich tone without the inconsistency found in ivory, bone, and other natural materials. Bone and ivory have hard and soft spots (grain) throughout each piece, hampering the consistent transfer of vibrations to the guitar top. TUSQ nuts are designed to transfer the right frequencies more efficiently from the string to the guitar body.

Best for Acoustic Guitars.

TUSQ XL and Black TUSQ XL

TUSQ XL and Black TUSQ XL nuts are designed to boost guitar tone and performance. These precision-engineered nuts are made with a specially formulated material that couples the strings' vibrations to the neck and brings out the hidden harmonics and richness in every note. It is based on the highly resonant TUSQ man-made ivory but is permanently lubricated to improve the tuning performance of the guitar.

Best for Electric Guitars and BASS.

4.8
Rated 4.8 out of 5 stars
Based on 4 reviews
Total 5 star reviews: 3
Total 4 star reviews: 1
Total 3 star reviews: 0
Total 2 star reviews: 0
Total 1 star reviews: 0
100%would recommend this product
4 reviews
  • NP
    Nathaniel P.
    Verified Buyer
    I recommend this product
    Rated 5 out of 5 stars
    2 weeks ago
    Does what it says

    Great part for my BYO piezo build. Sums all my saddles to output to a preamp.

    Was this helpful?
  • AA
    Andriano A.
    Verified Buyer
    I recommend this product
    Rated 4 out of 5 stars
    11 months ago
    Great, but missing summing cable

    It's just a summing board, nothing special, but it's good quality! I thought, that it includes the summing cable, that goes to the Acusti-Phonic preamp, but it doesn't, maybe I misunderstood during the purchase... 🙂 In my opinion it should be included, because without it the board is almost useless 🙂 I found some DS1023 connectors in my local store though, so I plan to use it 🙂

    Other than that, I'm pretty happy with the whole system!

    Thank you! 🙏 🙂 🍻

    Was this helpful?
  • TE
    Thomas E.
    Verified Buyer
    I recommend this product
    Rated 5 out of 5 stars
    1 year ago
    PERFECT TO CONNECT THE BRIDGE

    PERFECT TO CONNECT THE BRIDGE

    Was this helpful?
  • MW
    Mark W.
    Verified Buyer
    I recommend this product
    Rated 5 out of 5 stars
    1 year ago
    The sum total of Summing Boards

    I have Ghost saddles on four (soon to be five) guitars to access convincing acoustic guitar tone from electric guitars on the fly, mostly in a musical theater pit band setting, along with live club dates with rock and country cover bands. With stage square footage often limited and having to go from electric to acoustic in the space of a couple of measures, switching instruments is just not practical. With the Ghosts, I flip a miniswitch and ta-da! <jazz hands>

    Using the Pickup Summing Board is far easier than stripping the exceedingly fine wires coming from the Ghost saddles and then carefully soldering them together. Trust me on this, as that's how I did my first Ghost install before learning the joy and wonder of the Pickup Summing Board.

    Highly recommended!

    Was this helpful?
